RVP42-7M Forklift Direction Recognition Radar Sensor for Warehouse Loading Dock Door

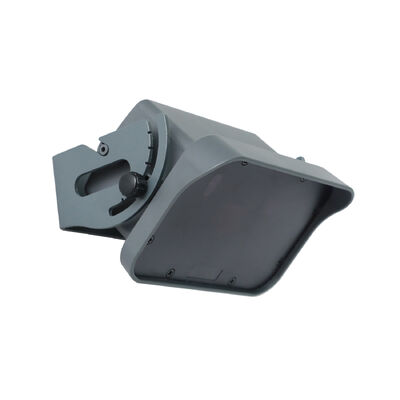

JUTAI RVP42-7M 24GHz Industrial Doppler Radar Motion Sensor​

Precision Vehicle & Pedestrian Detection for Industrial Doors, Gates & Access Control Systems

Product Overview​

The JUTAI RVP42-7M is engineered for the most demanding industrial environments. It utilizes 24.125GHz Doppler radar technology combined with advanced digital signal processing to accurately detect moving vehicles, pedestrians, and forklifts. Intelligent filtering algorithms significantly reduce false triggers, while its IP65-rated housing and wide operating temperature range (-30°C to +60°C) ensure reliable performance in outdoor, cold storage, and factory settings. With flexible configuration options, it is the ideal solution for automating doors, gates, and access points in logistics, manufacturing, and security applications.

Core Competitive Advantages​

• Intelligent Target Discrimination: Achieves 95% accuracy in identifying vehicles and pedestrians using a planar Doppler radar module. It supports forward, backward, and bidirectional movement detection and effectively rejects static interference.

• Ultra-Low False Alarms: Equipped with 4-level lateral motion filtering (blocks side-to-side movement) and 2-level electromagnetic interference suppression (counters noise from fluorescent lights, motors, inverters), keeping false triggers below 1%.

• Rugged Industrial Design: The IP65-sealed housing resists dust, water, and extreme conditions (-30°C to +60°C; humidity up to 95% non-condensing). Ideal for harsh environments.

• Adaptable Configuration: Features 5 sensitivity levels, adjustable relay hold times (0.2–5s), 7 mounting height presets, and multiple detection modes for versatile deployment.

• Rapid & Stable Operation: Responds in less than 50ms, offers configurable NO/NC relay outputs, and operates efficiently on a 12–36V DC supply (<100mA current consumption).

Technical Specifications Table​

Key Functional Highlights​

• Multi-Mode Detection & Direction Recognition: Supports 9 operational modes (e.g., vehicle/pedestrian forward/backward/bidirectional) for customized triggering based on target type and workflow.

• Adjustable Lateral Filtering: Blocks laterally moving pedestrians or vehicles—essential for roadside gates or factory entrances—to minimize false alarms.

• Flexible Relay Control: Set hold times from 0.2 to 5 seconds or configure continuous/off output; select NO/NC contacts for seamless integration with any door/gate controller.

• Strong Interference Resistance: Activate anti-interference mode to mitigate electromagnetic noise from motors, wireless devices, or lighting—ensuring stable operation in electrically noisy environments.

• Easy Installation & Maintenance: Includes mounting bracket, 7m cable, and LED status indicator; supports factory reset for fast on-site troubleshooting.

Performance Comparison vs. Traditional Sensors​

Typical Applications​

• Industrial Doors: Automate roll-up, sliding, or high-speed doors in factories to detect forklifts and workers.

• Cold Storage: Reliable performance at -30°C to prevent cold air loss in freezer areas.

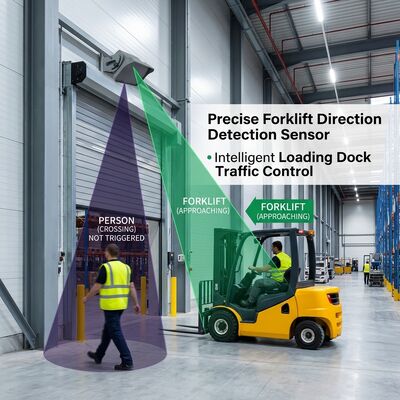

• Warehouse Docks: Fast forklift detection and directional recognition for efficient loading/unloading.

• Parking Systems: Control barriers and gates with vehicle/pedestrian counting and access management.

• Garage Doors: Enable automatic opening and anti-pinch protection for residential/commercial garages.

• Access Control: Integrate with community, office, or factory gates for automated entry solutions.

Installation Guidelines​

• Mount on a flat, stable surface free from vibrations.

• Ensure the detection zone is clear of swaying objects such as banners or plants.

• Avoid placing metal directly in front of the sensor (may interfere with radar signals).

• Keep away from strong electromagnetic sources (e.g., fluorescent lights) or enable anti-interference mode.

• Select the appropriate mounting height preset (2–7m) for optimal coverage.

Packaging & Support​

• Standard Package: Sensor unit, mounting bracket, screws, 7m pre-wired cable, user manual.

• Customization: OEM/ODM packaging with branded logos/labels available upon request.

• Warranty & Service: Standard 2-year warranty (optional 3-year extension); 48-hour email response / 24-hour hotline support; remote troubleshooting; custom firmware development available for specialized requirements.
